Name: 24,000 BTU Mini-Split Heat Pump Air Conditioner-230V
Brand: TOSOT
SKU: TST-SU-MUSE-24K230-WF
Price: 1399.99 USD
Availability: InStock

NaN -Infinity

Save $300.00 Coming soon

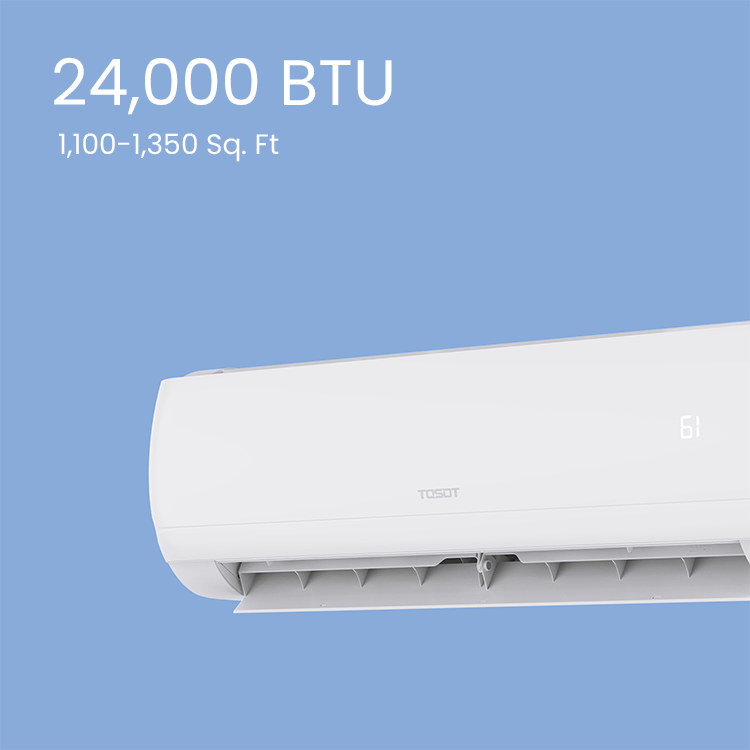

24,000 BTU Mini-Split Heat Pump Air Conditioner-230V

$1,399.99

$1,399.99 ~~$1,699.99~~

available for orders over $1 ⓘ

SKU: TST-SU-MUSE-24K230-WF

Bundle & Save 15%: Get 15% off when you purchase a split AC together with a PVC cover and bracket. Scroll down to the "Frequently Bought Together" section to buy the bundle.

Key Features:

For spaces up to 1,350 sq. ft
22 SEER2 high-efficiency air conditioner
Built-in heat pump
Noise level: 44/39/35/30 decibels
WiFi-Enabled
5-Year warranty for the whole unit

BTU Model

WiFi Option WiFi Enabled

Product variants

🛠️Now offering installation services in Texas and Washington State. To request service and pricing, please fill out the HVAC Installation Service Form

View full details

Features
Tech Specs
Reviews
Manuals
Related Video

➡️Download/View the complete technical sheets

PERFORMANCE

EER(Btu/h)/w: 12.23
COP(Btu/h)/w: 12.46
SEER: 22(SEER2) 21(SEER)
HSPF: 9.0(HSPF2) 10.0(HSPF)
Dehumidification (Pts/hr): 5.1
Est. Cooling Area (Sq. Ft.): 1,350
Amps: 12
Watts: 2650
Min. Current (MCA) (A) : 17
Temperature Range (°F): 61-86
Noise Levell (SH/H/M/L): 52/45/40/37 decibels

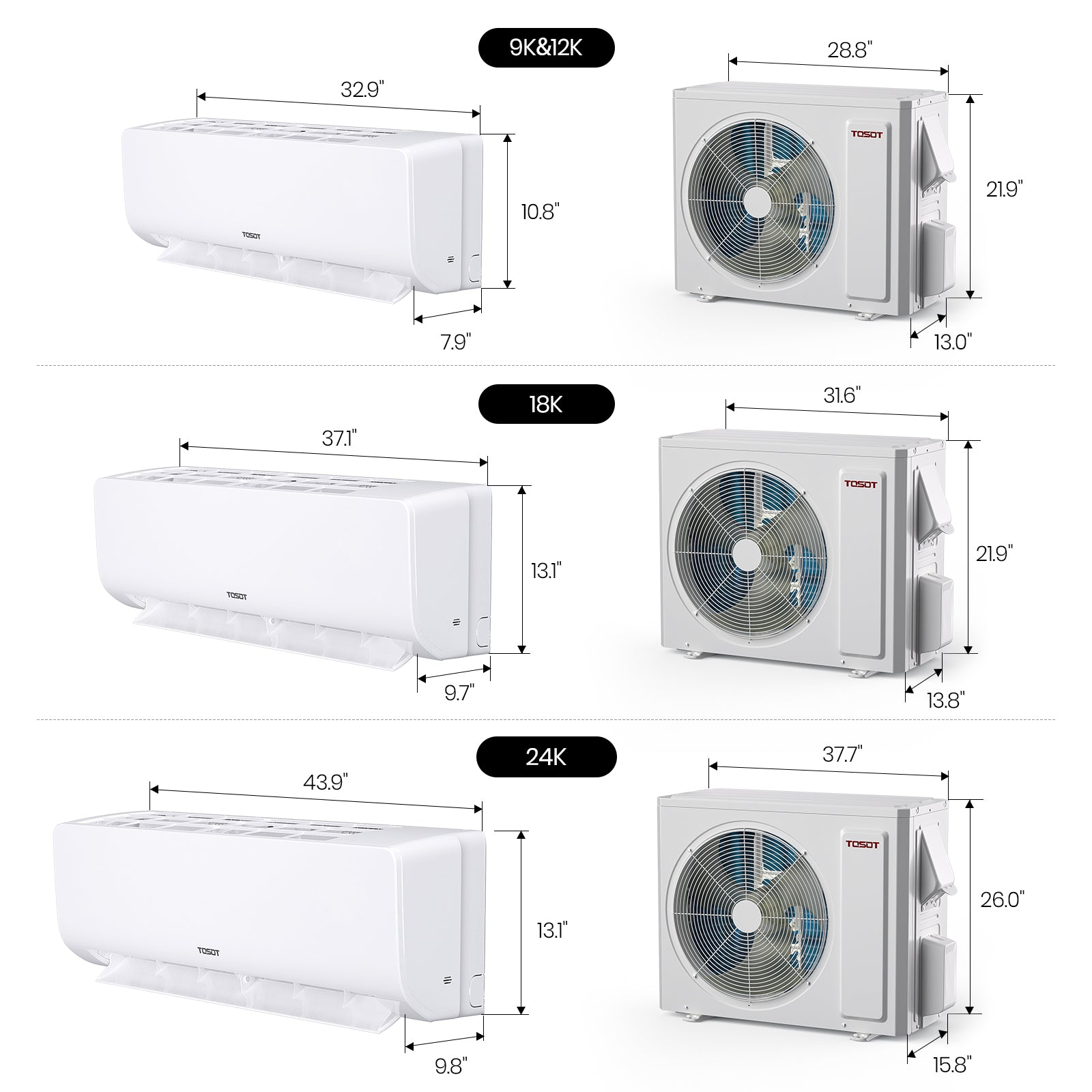

DIMENSIONS & WEIGHTS

Indoor Unit

Approximate Shipping Weight (lbs): 43.0
Approximate Net Weight (lbs): 36.4
Shipping Dimensions (W×H×D) (inches): 46.3 x 16.0 x 13.1
Unit Dimensions (W×H×D) (inches): 44.7 x12.9 x9.7

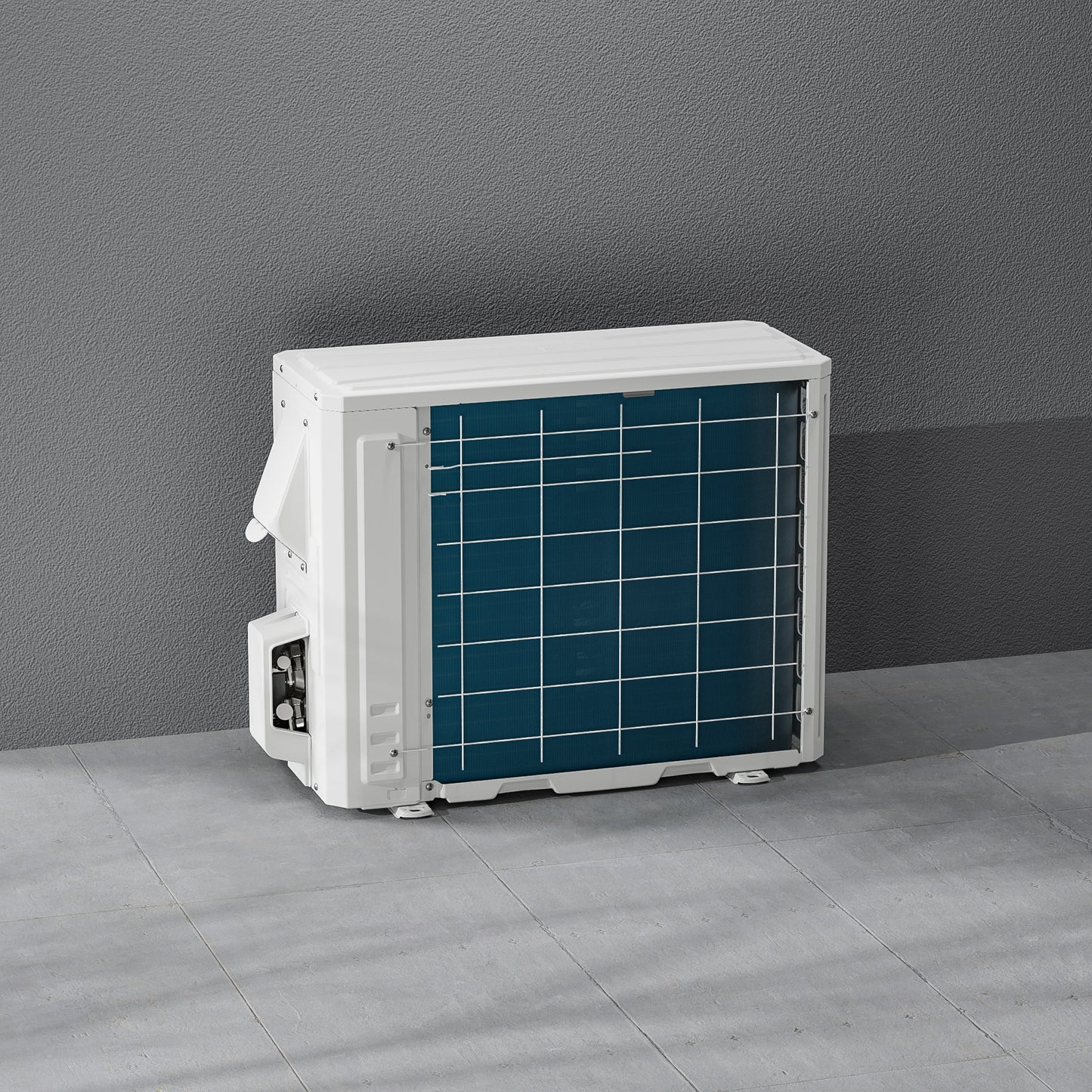

Outdoor Unit

Approximate Shipping Weight (lbs): 105.8
Approximate Net Weight (lbs): 95.9
Shipping Dimensions (W×H×D) (inches): 40.6 x 29.0 x 18.0
Unit Dimensions (W×H×D) (inches): 37.7 x 26.0x 15.8

Line Set Length

Copper Line Set(ft): 16
Signal Cable(ft): 19
Power Cord(ft):19

Customer Reviews

4.9 Based on 16 Reviews

5 ★

88%

4 ★

12%

3 ★

2 ★

1 ★

Customer Photos

24,000 BTU Mini-Split Heat Pump Air Conditioner-230V - Customer Photo From Anonymous

24,000 BTU Mini-Split Heat Pump Air Conditioner-230V - Customer Photo From Dale Barnes

Write a Review Ask a Question

Reviews
Questions

Thank you for submitting a review!

Your input is very much appreciated. Share it with your friends so they can enjoy it too!

01/20/2025

Anonymous

United States

So far so good

I ordered this unit during the holiday end of year sale. The timing and FedExs handling of the first unit constituted a return and shipment of a second unit. I finally was able to get a few decent days in my area to do the install. Everything went together nicely and the unit powered up in heat mode and ran quietly for 24 hours. I only plan to use this when I am working in my garage so it will not be run continuously. So far it seems like a solid product. Customer support has been prompt and responsive.

TOSOT Direct 24,000 BTU Mini-Split Heat Pump Air Conditioner-230V Review

08/27/2024

Dale B.

United States

Awesome Addition!

This is an awesome addition to my garage/shop. Here, I use the garage as a shop once I back out the cars. In the summer the temps in the garage are about 85 degrees and wintertime dip to the low 50's. So far, it has had no problems keeping the garage cool in the low 70's. It is wonderful to work out there now. The bride appreciates it because I'm not working in the basement! The install was predictable. There are several YouTube videos showing how to install mini-splits. The videos showing the Mr Cool install is very close to the TOSOT installation. I do recommend the LRN2DIY third video. Do not underestimate the electrical work! I do recommend using 10-gauge wire and using fuses in the disconnect box for the recommended amperage per TOSOT. This way you can upgrade to a larger/multi mini-split system without rewiring. After watching several different videos, I realized hoisting the indoor unit up (on a ladder) can be sporting. I temporarily install huge garage hooks about 1.5"~2" below the unit to help ease the installation. The outdoor unit install is straight forward but heavy. Plan accordingly. We mounted on the wall using brackets with 300# capacity. The rubber damper feet keep any vibration off the wall and not transferred. I did cut the line set to the minimum length and had to re-flare the copper tube ends. The 5/8" tubing went fine with the flaring tool. However, the 1/4" tube took a few tries to get it correct. I'd practice first on the cut off pieces. Even trimmed, I still had 3 feet to loop around. If I had to do it over, I'd move the outdoor down the wall, so I don't have to loop the line set. This unit is so quiet -- both inside and outside! Unbelievably quiet. Since this is a heat pump for heat, I do acknowledge there is a point where heat pumps don't work when it's too cold. In that case, I'll use my Mr. Heat electric heater which sounds like a jet engine. Typically, this would be less than a dozen days per winter in the Midwest. You can control the mini-split with the included remote or a cell phone app. For those of you using Home Assistant, there is a Gree+ Integration. The HA Integration works well and recognized my TOSOT right off the bat. Kudos to the authors of the GREE+ Integration! For the price and a little bit a of work, you can install this mini-split series yourself! Highly recommend.

03/17/2025

Rodger L.

United States

Outstanding Unit

I purchased this unit from Home Depot in Mobile, Alabama and installed the TOSOT 24000 BTU mini split in my 1000 sq ft shop. My shop is attached to my house and constructed with 8" Hebel Block (Aerated Autoclaved Concrete or AAC) clad with Hardy Board lap siding which made the wall piercing a bit more challenging! Also, with no template, I found it a little tedious to measure the hole location. My only issue was there were no rubber insulating feet, no 5mm hex wrench, no filler putty, and no through wall sleeve included, the reason for 4 instead of 5 stars. I did the electrical. I'm not an electrician, but very experienced in home electrical and ethernet wiring. I chose to pour a 36x20" concrete slab for the condenser unit. Because we have a lot of thunderstorms down here, I elected to install a surge protector on my outside disconnect. I chose to trim the hose set and re-flare. I highly recommend the use of Nylog Blue and torquing the fittings to specs. Also, practice flaring with the excess pipe you cut off! Pay attention to the need to "reopen" the pipe after cutting, as the cutting process will compress the pipe somewhat. I couldn't be happier with the unit. It looks great, it's super quiet and does the cooling! I was a little disturbed when, about 20 minutes after doing the initial run, the LED temp select indicator on the inside unit went blank. I reset the power to no avail. I saw a suggestion on Google to check the remote batteries. They were OK but a little on the low side. I replaced them with fresh, tested batteries and the LED came back. So, even though there was enough power in the remote to turn the unit on and off, it, apparently needs a little more "juice" to communicate with the inside unit. And there is a limited distance to be aware of. I highly recommend this unit. The iPhone App works great!

03/11/2025

Marc S.

United States

24,000 BTU Mini-Split

Great product! Very efficient and super quiet operation!. the outdoor unit is also very quiet!

02/28/2025

Brandon S.

United States

So far it is great!

I needed a longer lineset and ordered from the manufacturers site. I was not sure if the lineset I ordered was the proper size because of the writing on the insulation. Thier support was great, I called them, they picked up my call quickly, and followed up in email several times over the next few days to make sure I was all set. I couldn't ask for more! I know, I know there is some hesitation to buy a brand that is not domestically based but in my experience if a company will provide great support it is the true sign that a company cares. Try calling one of the domestic branded producers and report back on the response time and follow up. Just saying.

DIY Mini Split Install By LRN2DIY

I saved $4,200 installing a mini split AC myself By See Jane Drill

How To Install A Mini Split AC The Right Way By The Handyman

TOSOT Mini-Split Installation [Electrical Emphasis] By BrettleyBuilt

*These videos are intended solely for educational purposes and should never replace professional advice. It's crucial never to disregard the guidance of a qualified HVAC professional. Always discuss this information with an HVAC expert to ensure it's suitable for your specific situation.

Inverter Technology

High Efficiency

Quiet Operations

WiFi Control

4-in-1 Comfort

5 Years Standard Warranty

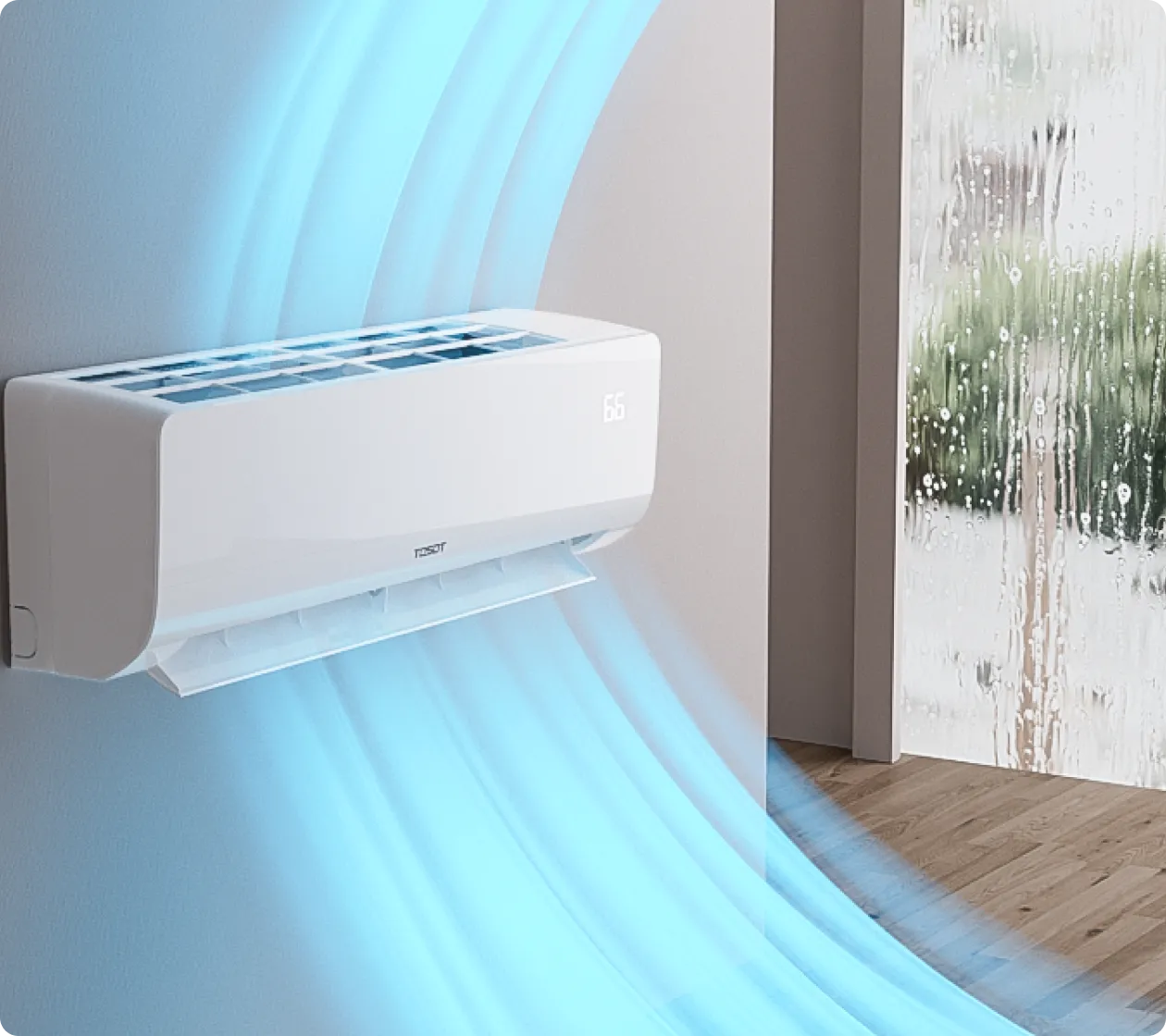

More Efficient, Stable Cooling

What and Why Inverter?

Advanced inverter technology will adjust the running speed of the compressor to achieve the set temperature without wasteful cycling. TOSOT inverter technology has less power loss, lower noise, and saves more energy. The unit also won’t wake you up at night by constantly turning the compressor on and off.

Reduces Energy Use by 55% to Save Money

AHRI Certified

The higher the SEER2, the better the energy performance. Rated at 22 SEER2, the Muse series split AC is estimated to lower energy costs up to 55% per year, compared to standard 10 SEER units. This model is perfect for anyone looking for an all-season AC/heater combo for their home or business.

◆Cooling Savings ◆

10 SEER VS. 22 SEER2

◆Annual Energy Cost Only $394

*Based on 13.19 cents/KWh and 1320 yearly cooling hours average for United States. This stats is only for references.

Control Your Devices

No more missing remote. Control your device any time from your phone.

*Control page may vary due to different app versions or devices.

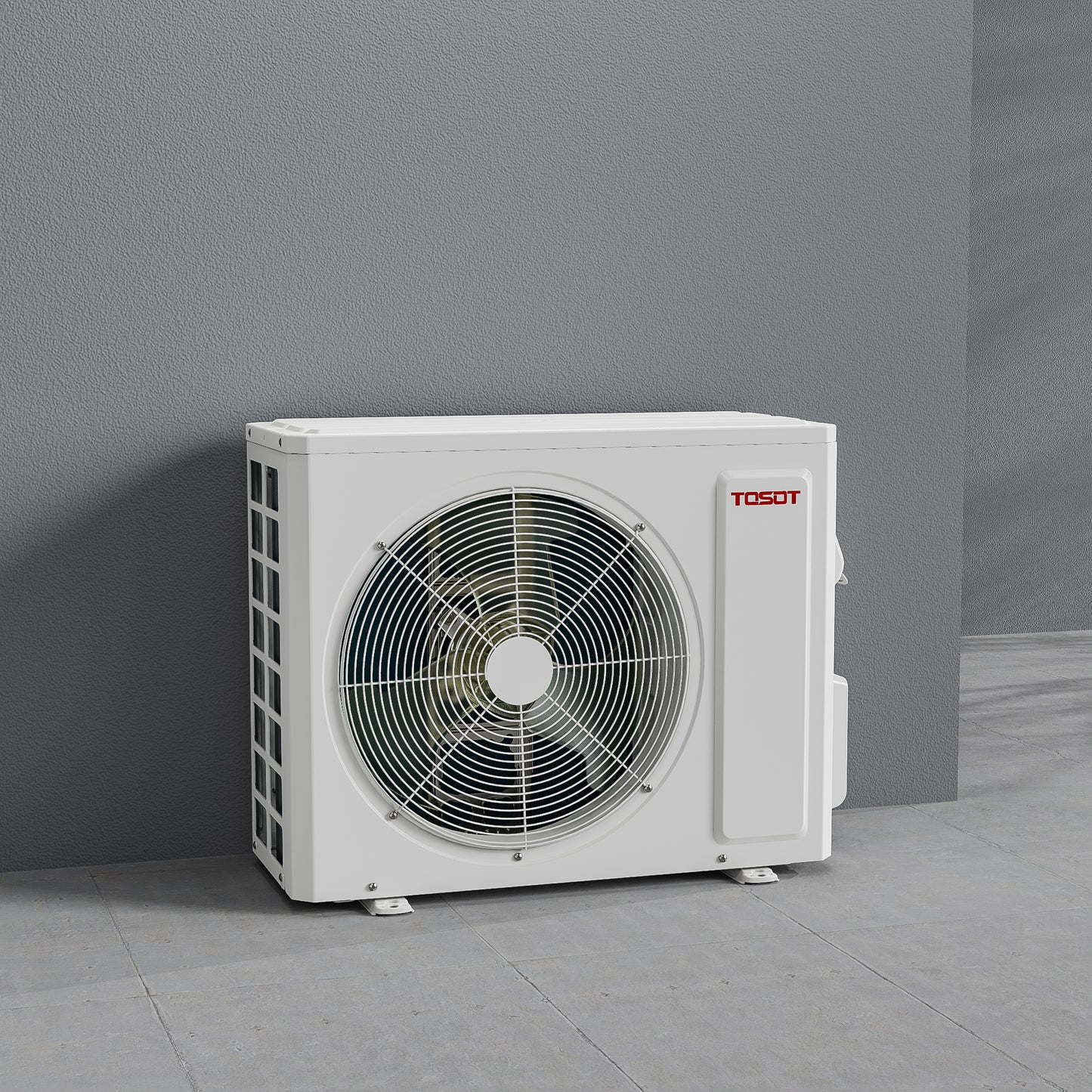

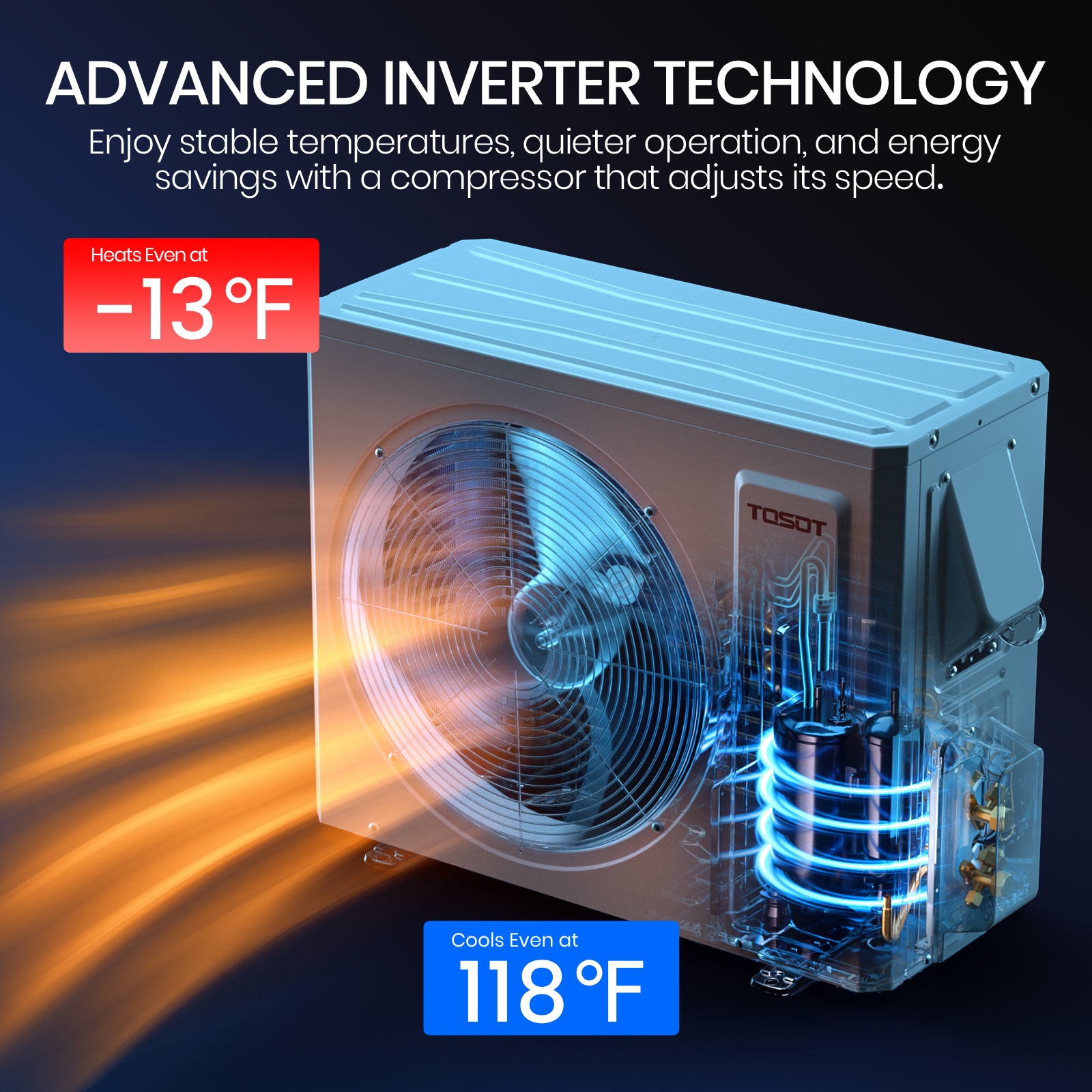

Advance Compressor

Durability By Design

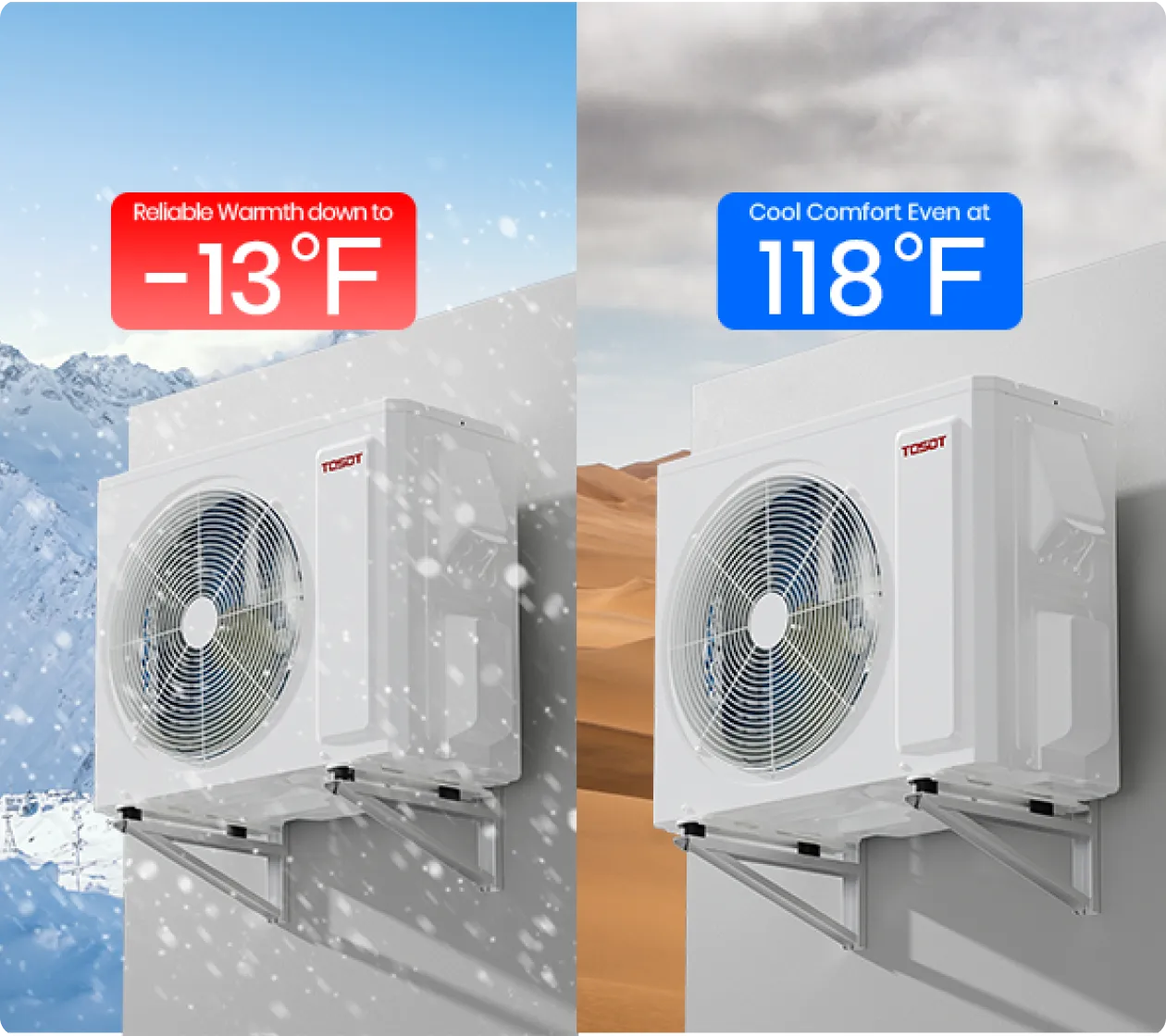

The advanced technology that drives the compressor still achieves stable performance under extreme weather conditions. Cools your room at high 122℉ temperatures while still providing warmth at temperatures down to -13℉.

Enjoy Tranquility in Your Home

The noise level of the indoor unit is only 24 dB, bringing you back to complete silence and keeping the noise of the compressor entirely out of your room. Your comfort will no longer be interrupted by a loud compressor.

5 Year Standard Warranty for the Whole Unit

We’ve Got Your Back

The 5-year warranty covers both the compressor and other parts of your unit. With over 30 years of manufacturing experience in the AC industry, we always strive to provide the highest quality product to all our customers.

30 years manufacturing experience; inverter;inverter technology;ISO 9001 quality management system certificat;R410a green refrigerant; ETL verified; AHRI certified

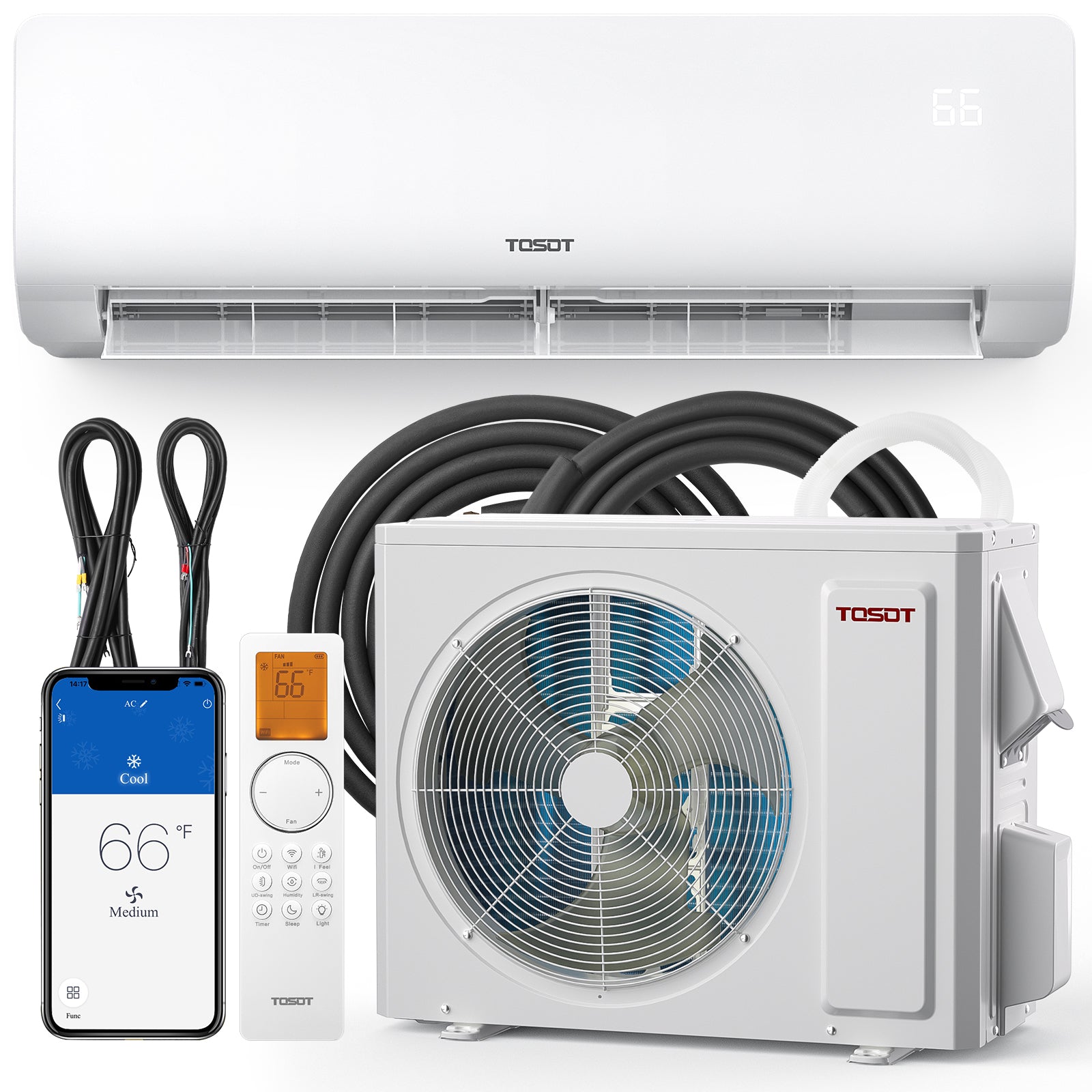

package list: darin joint; tape; sealing gum; wall cuff; screw and anchor; darin hose; remote control; signal cable; power cord; copper line set

accessories list: remote control, darin joint, tape, sealling gum, wall cuff, signal cable, power cord, screw and achnchore, drain hose, copper line set

DIY Installation Kit Included

Ready for Installation

A basic installation set is included. Additional tools may be required for installation. DIY Installation is possible for ambitious DIYers but if that’s not you, we recommend you contact a local qualified professional to help you out.
